Products Center

Current Location:Home > Products Center > 8/8/3 3 in 1 Water Filling Machine >

Product Detail
  • 8/8/3        3 in 1 Water Filling Machine
  • 8/8/3        3 in 1 Water Filling Machine
  • 8/8/3        3 in 1 Water Filling Machine
  • 8/8/3        3 in 1 Water Filling Machine

8/8/3 3 in 1 Water Filling Machine

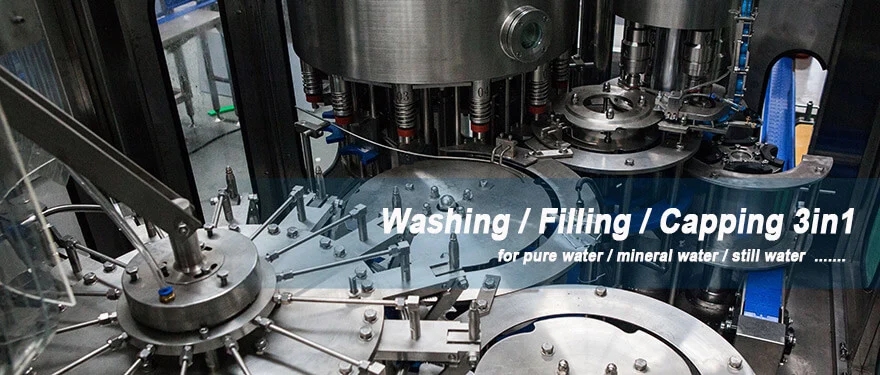

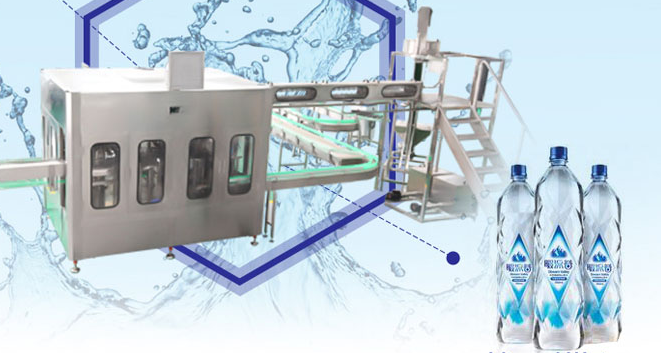

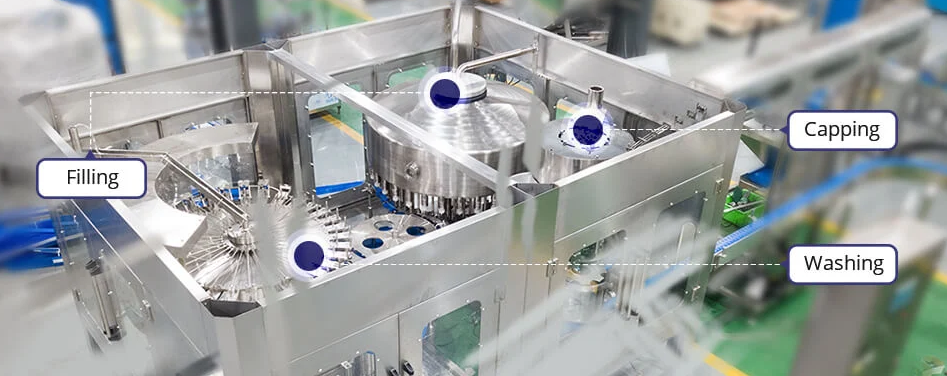

    This machine is mainly used for filling drink water. It combines washing ,filling and capping as one automatic body.

Product Description

/instructions


Main Technical Parameter



Model

CGF8-8-3

CGF14-12-4

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-12

Capacity(500ml bottles)

2000

3000-4000

6000-8000

8000-12000

13000-15000

16000-18000

Suitable bottle shapes

? ? PET circular or square?

Bottle diameter(mm)

? ? Dia50-Dia115mm

Bottle height (mm)

160-320mm

Compressor air pressure(Mpa)

0.3-0.7Mpa

Washing meidum

Aseptic ? water?

Rinsing pressure(Mpa)

>0.06Mpa<0.2Mpa

Application

Bottle ? water filling machine

Total power (KW)

4.4

4.4

4.4

5.2

6.2

7.8

Overall dimensions(L*W)

2.3*1.9

2.5*1.9

2.8*2.15

3.1*2.5

3.8*2.8

4.5*3.3

Height?

2.3m

2.5m

2.5m

2.5m

2.5m

2.6m

Weight(kg)

2500kg

3200kg

4000kg

4500kg

6500kg

8000kg


? ? ??
